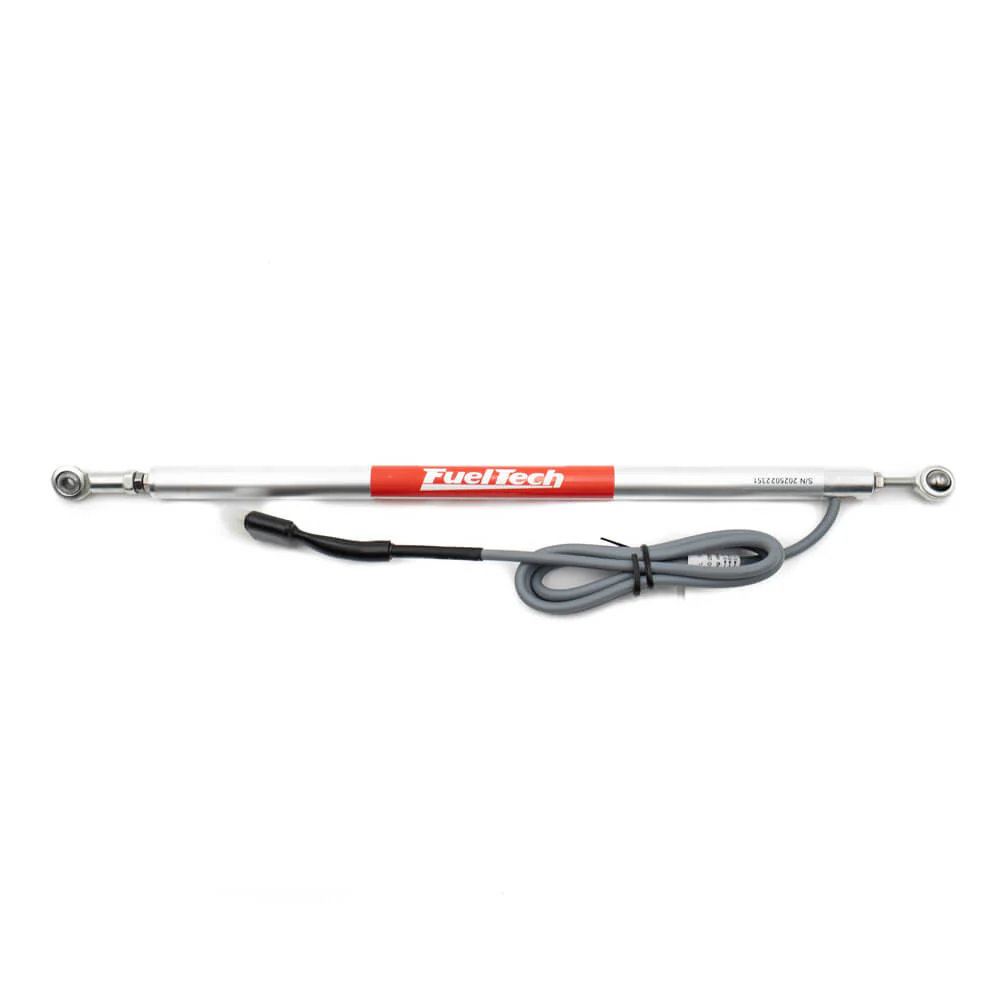

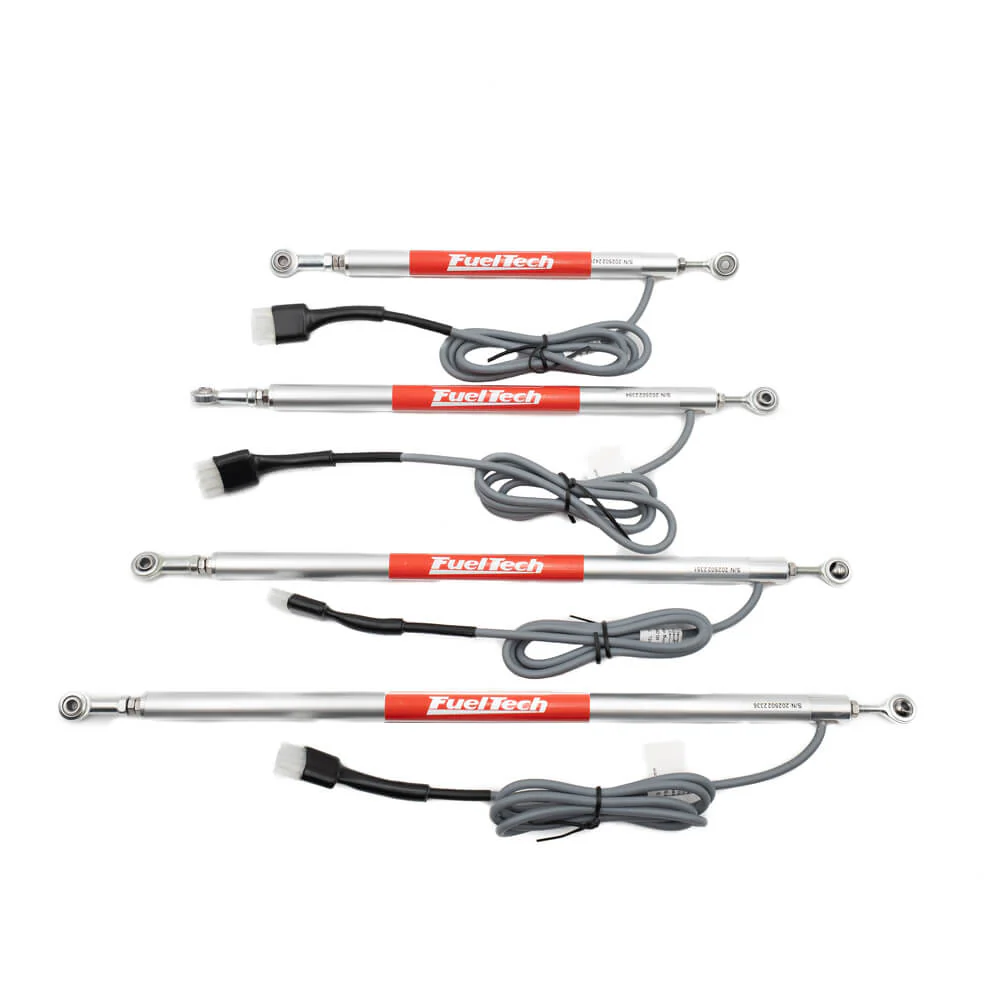

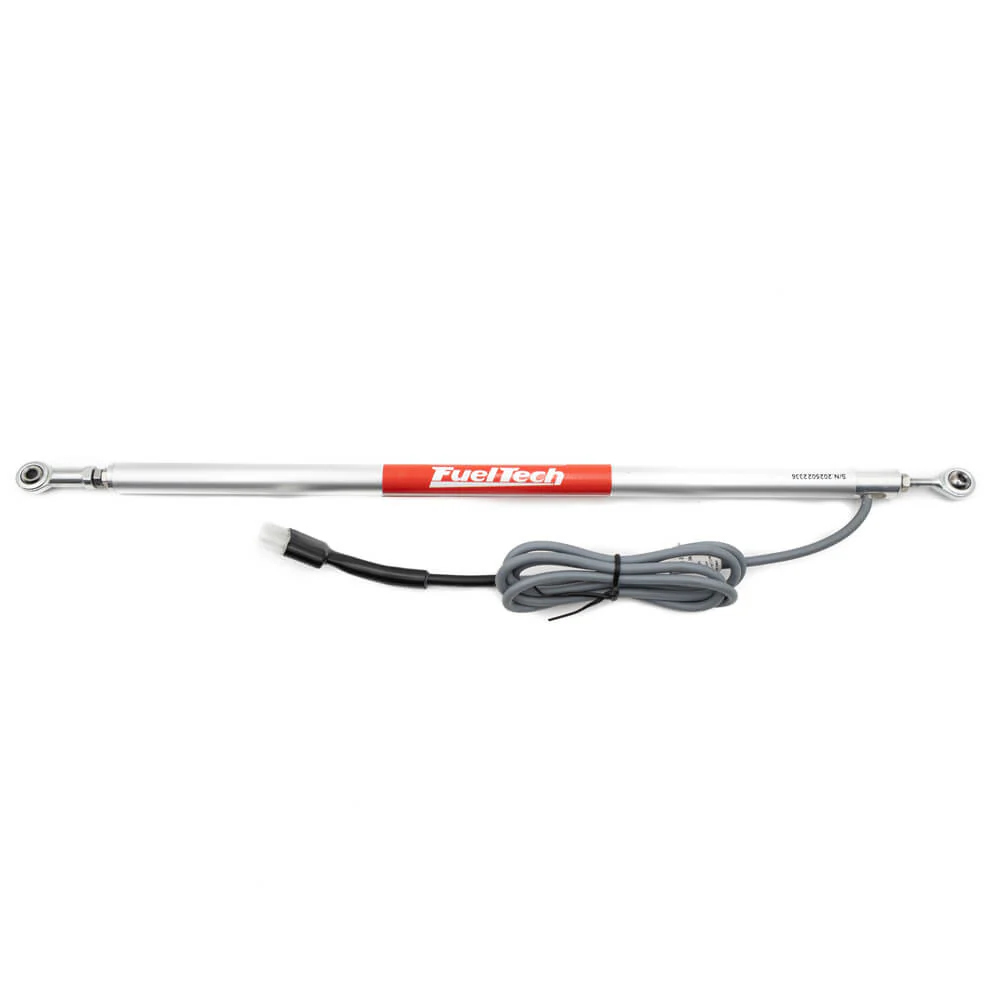

Travel Sensor

Travel Sensor

Technical Description

4" Travel Sensor:
  • Total Travel: 4"
  • Length Closed: 9"
  • Length Extended: 13"
  • Mounting: 4mm Heim joints
  • Cable Length: 38.5"
6" Travel Sensor:
  • Total Travel: 6"
  • Length Closed: 11"
  • Length Extended: 17"
  • Mounting: 4mm Heim joints
  • Cable Length: 38.5"
8" Travel Sensor:
  • Total Travel: 8"
  • Length Closed: 13"
  • Length Extended: 21"
  • Mounting: 4mm Heim joints
  • Cable Length: 38.5"
10" Travel Sensor:
  • Total Travel: 10"
  • Length Closed: 15"
  • Length Extended: 25"
  • Mounting: 4mm Heim joints
  • Cable Length: 38.5"

Voltage/Output:

  • Supply voltage: 5V
  • Signal Output: 0V - 5V

Connector Pinout:

  • Pin 1 - Ground (Brown)
  • Pin 2 - Signal (Yellow)
  • Pin 3 - 5V (Blue)
